Boss CH-1 Super Chorus Pictures

Acquired: 12/26/1998 - Ward-Brodt Music

(Click on the picture to see a larger version)

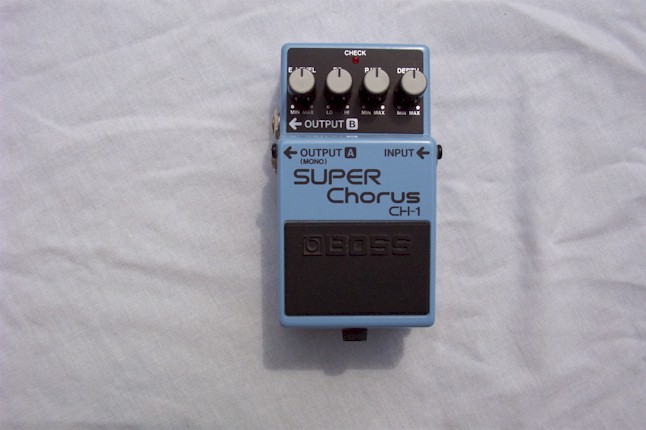

CH-1 Super Chorus Picture

Controls: E(ffects) LEVEL knob
EQ(ualizer) knob
(Modulation) RATE knob
(Modulation) DEPTH knob
Pedal switch
Indicator: CHECK indicator
(Used for indication of check battery)
Connectors: INPUT Jack
OUTPUT Jacks A (mono)/ B
AC Adaptor Jack (DC 9 V)
