Boss DD-5 Digital Delay Pictures

Acquired: 5/13/2003 - Musician's Friend

(Click on the picture to see a larger version)

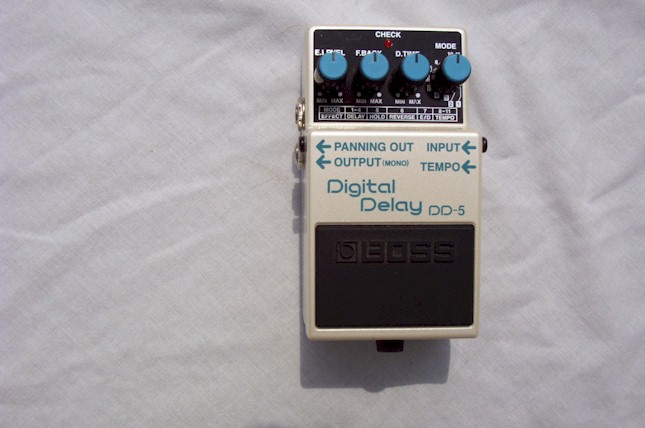

DD-5 Digital Delay Picture

Specifications
Manufactured:2003
Controls: E(ffect). LEVEL knob
F(eed). BACK knob
D(elay). TIME knob
MODE knob
   1: 1 - 50 ms
   2: 50 - 200 ms
   3: 200 - 800 ms
   4: 800 - 2000 ms
   5: Hold
   6: Reverse
   7: E(ffect)/D(irect): 1 - 400 ms
   8: Tempo Quarter
   9: Tempo Dotted Eighth
   10: Tempo Eighth
   11: Tempo Triplet Quarter
Pedal switch
Indicator: CHECK indicator
(Used for indication of check battery)
Connectors: Input Jack
Tempo Jack
Panning Out Jack
Output (Mono) Jack
AC Adaptor Jack (DC 9 V)
