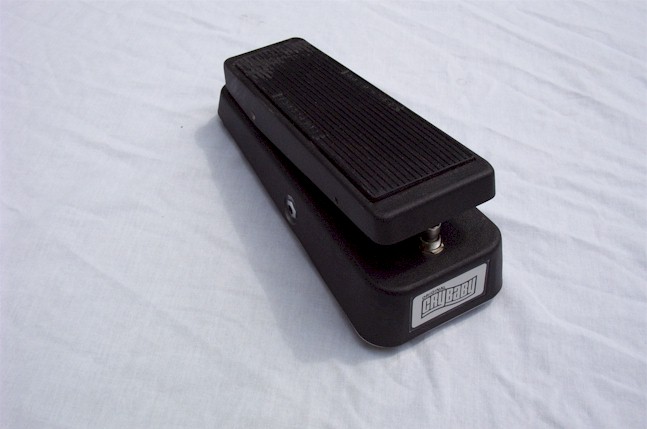

Dunlop GCB95 Crybaby Wah-Wah Pictures

Acquired: 11/25/1998 - Ward-Brodt Music

(Click on the picture to see a larger version)

Specifications Manufactured: 1998 Impedance Input: 800 kΩ Output: 10 kΩ Filter Parameter Low Pass: 350 Hz ~ 450 Hz High Pass: 1.5 kHz ~ 2.5 kHz Maximum Level Input: -8.0 dBV Output: +10 dBV Maximum Gain Heel Down: +19.5 dB Toe Down: +19 dB Signal to Noise Ratio Heel Down: 98 dBV Toe Down: 89 dBV Current Draw: 900µ
