Fender Cyber-Twin Pictures

Acquired: 9/18/2003 - Musician's Friend

(Click on each picture to see a larger version)

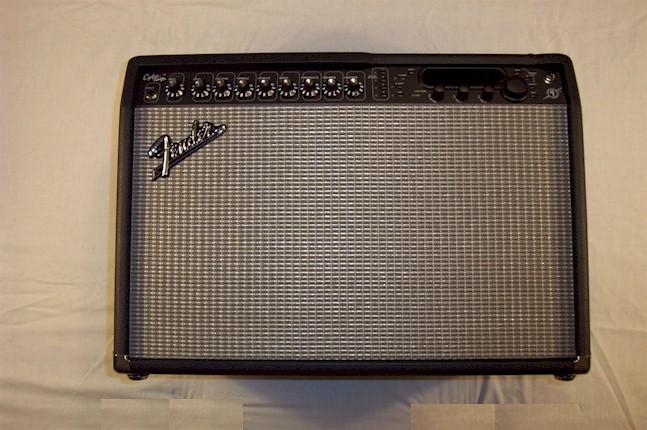

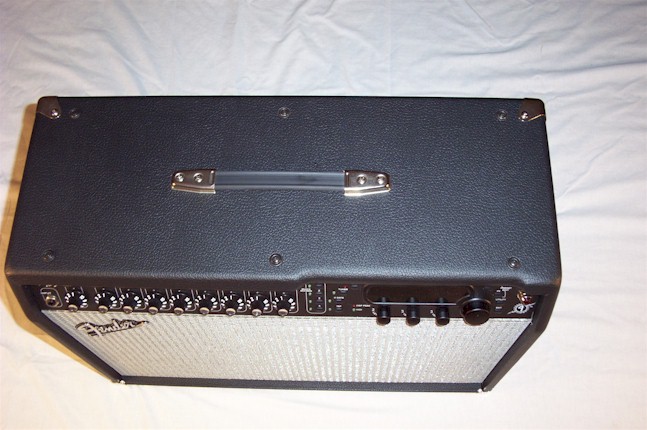

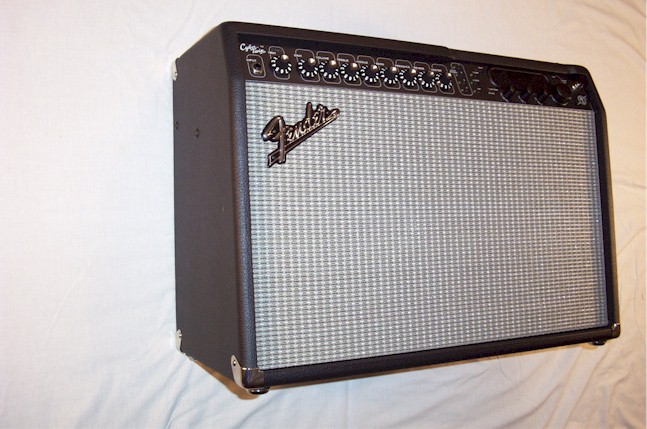

Cyber-Twin Picture 1 Cyber-Twin Picture 2 Cyber-Twin Picture 3 Cyber-Twin Picture 4
Cyber-Twin Picture 5 Cyber-Twin Picture 6 Cyber-Twin Picture 7 Cyber-Twin Picture 8

Specifications
Manufactured:2003
Model:Cyber-Twin
Serial Number:M1226661
Type:Tube, Solid State
Tubes:(2) Groove Tube 12AX7WA
Ohms:8
Channels:2
Power Output:130 Watts
Speakers:(2) Celestion 12" G12T-100

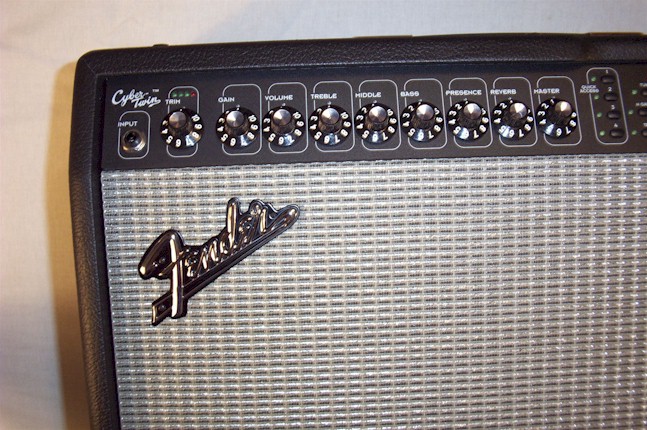

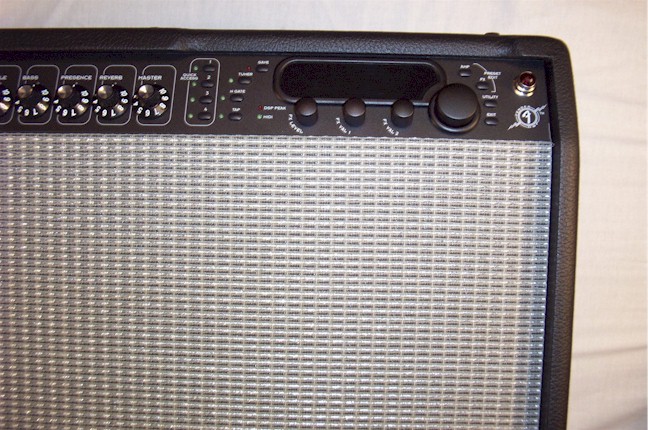

Front Panel: Input Jack
Trim Control
Gain Control
Volume Control
Treble Control
Middle Control
Bass Control
Presence Control
Reverb Control
Master Volume Control
(4) Quick Access Buttons
Save Button
Tuner Button
Noise Gate Button
Tap Button
Midi LED
Display Screen
FX Level Control
FX Value 1 Control
FX Value 2 Control
Data Wheel
  C00-C84 - FENDER CUSTOM SHOP:
  85 Premium amp and effects combinations stored in permanent memory.
  P00-P84 - PLAYER’S LOUNGE:
  85 rewritable presets for original Amp designs.
  A00-A34 - YOUR AMP COLLECTION:
  35 of the greatest amp circuits of all time, the way they left the factory, stock-equipped.
Preset Edit Amp Button
Preset Edit FX Button
Utility Button
Exit Button
Red Jewel Light

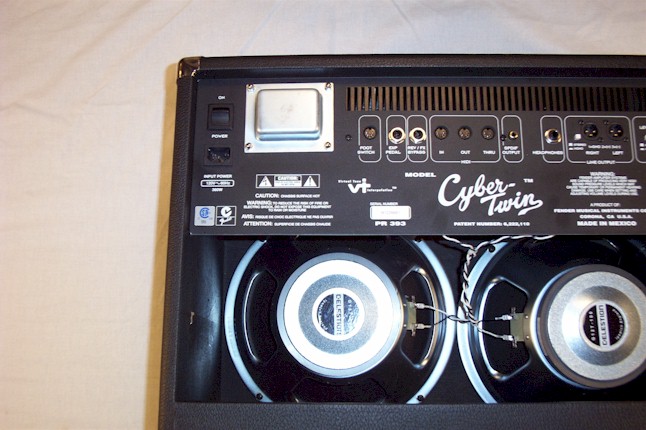

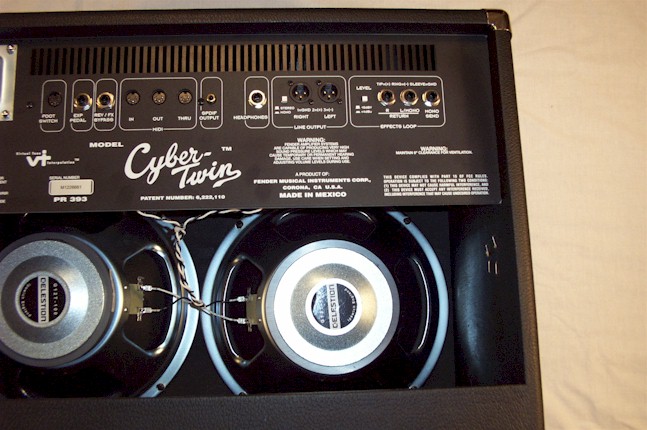

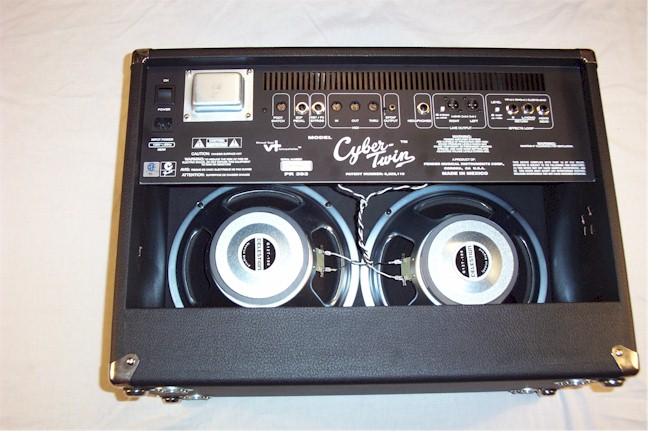

Rear Panel: Power Switch
Input Power Jack
Foot Switch Jack
Expression Pedal Jack
Reverb/Effects Bypass Jack
Midi In Jack
Midi Out Jack
Midi Thru Jack
SPDIF Jack
Headphones Jack
Stereo/Mono Switch
Right & Left XLR Jacks
Effects Switch
Right & Left/Mono Return Jacks
Mono Send Jacks
