Gibson L6-S Pictures

Acquired: 11/17/2011 - Music 123

(Click on each picture to see a larger version)

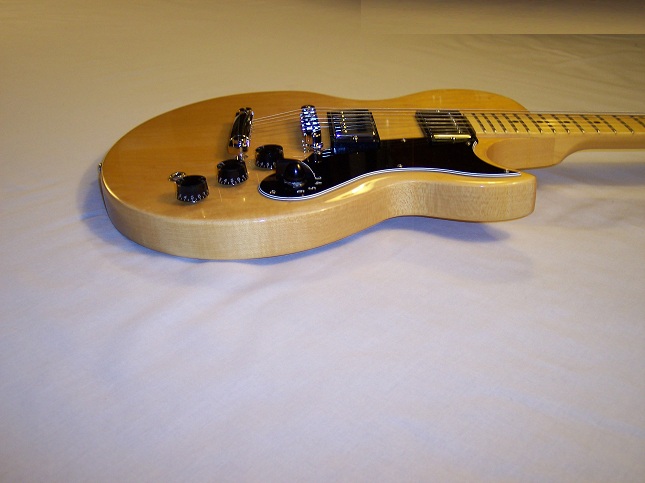

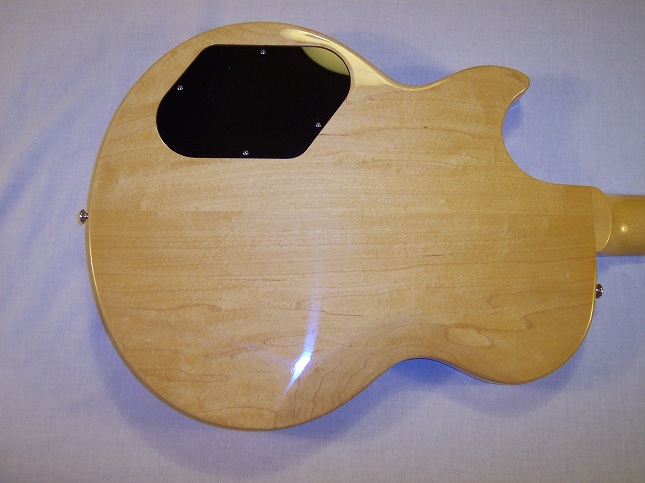

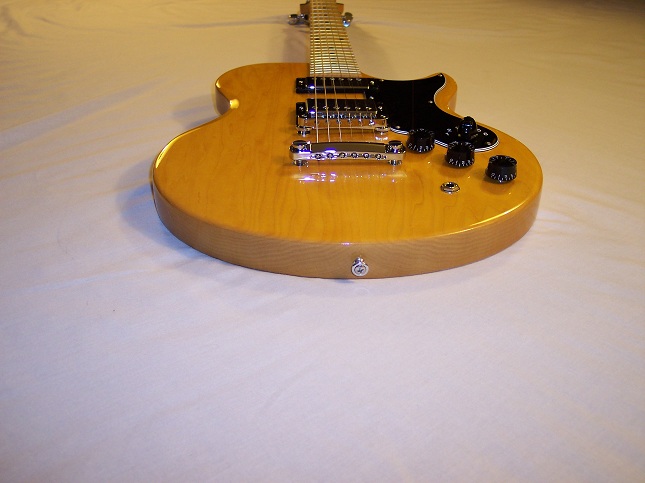

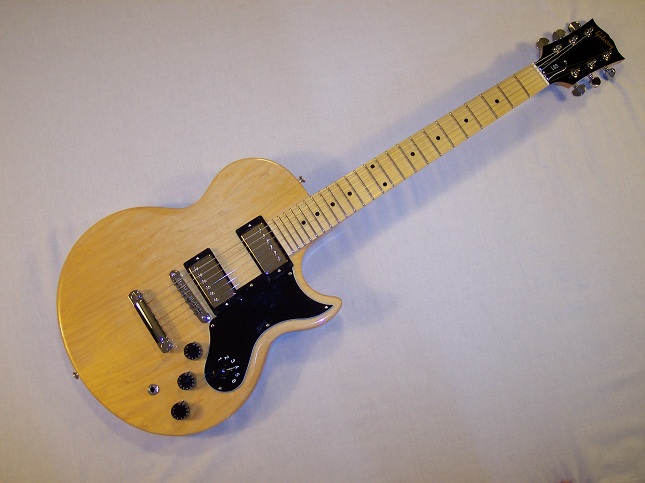

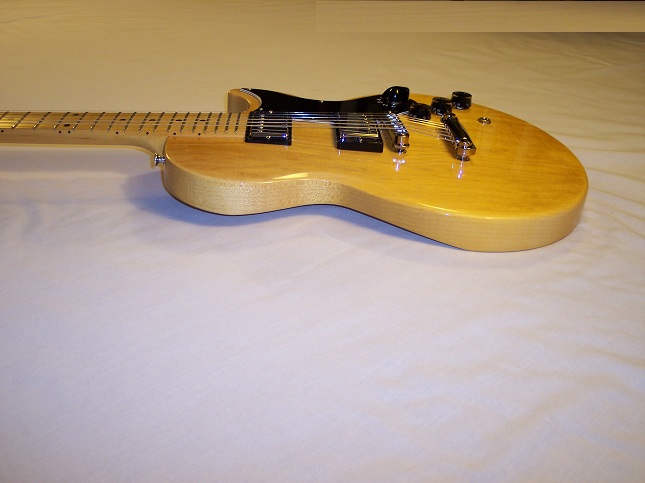

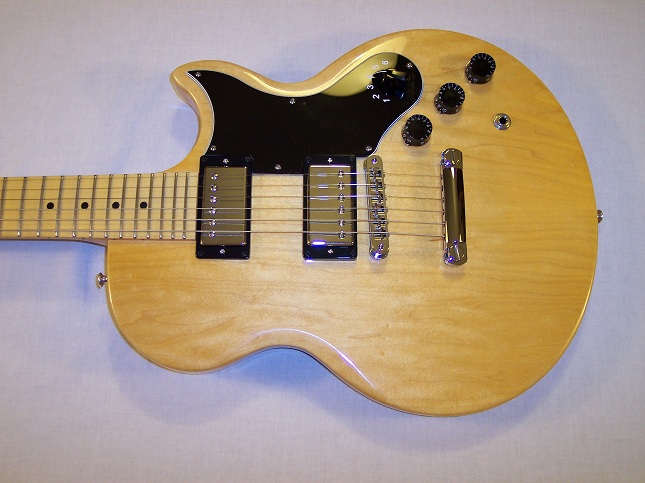

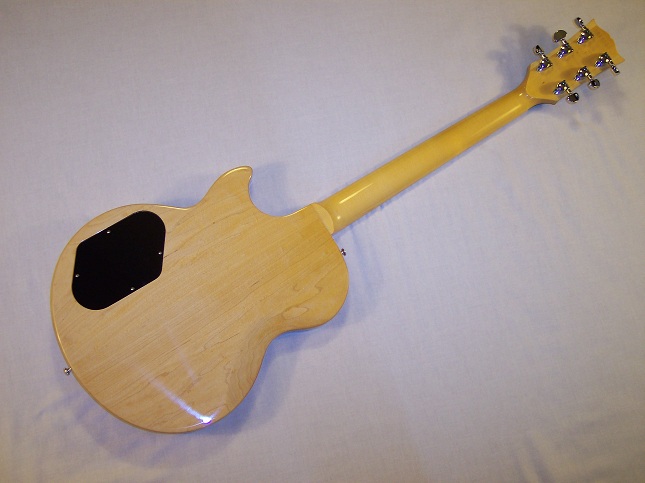

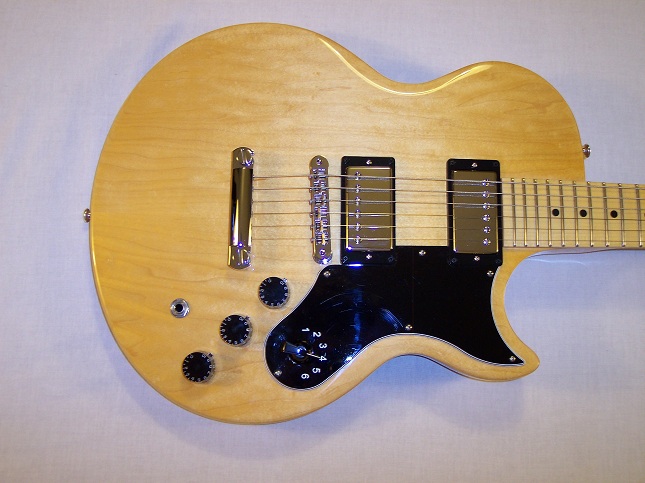

L6-S Picture 1 L6-S Picture 2 L6-S Picture 3
L6-S Picture 4 L6-S Picture 5 L6-S Picture 6
L6-S Picture 7 L6-S Picture 8 L6-S Picture 9
L6-S Picture 10 L6-S Picture 11 L6-S Picture 12
L6-S Picture 13 L6-S Picture 14 L6-S Picture 15

Specifications
Manufactured:2011
Model Code:DSL6ANCA1
Serial Number:125810353
Color:Antique Natural
Body Type:Electric Solid
Body Material:Maple

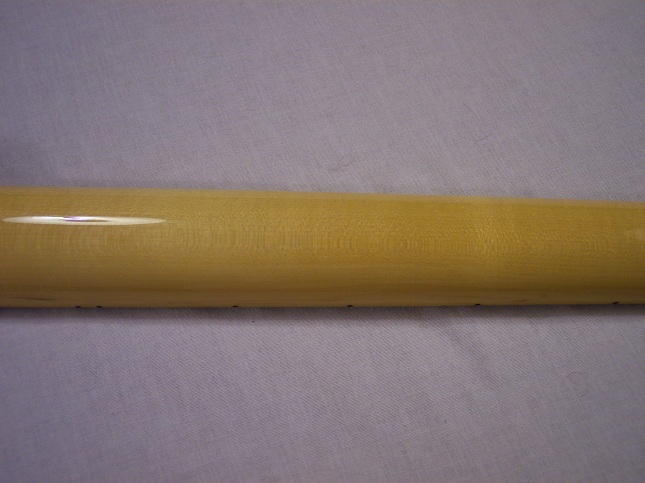

Neck Material:Maple

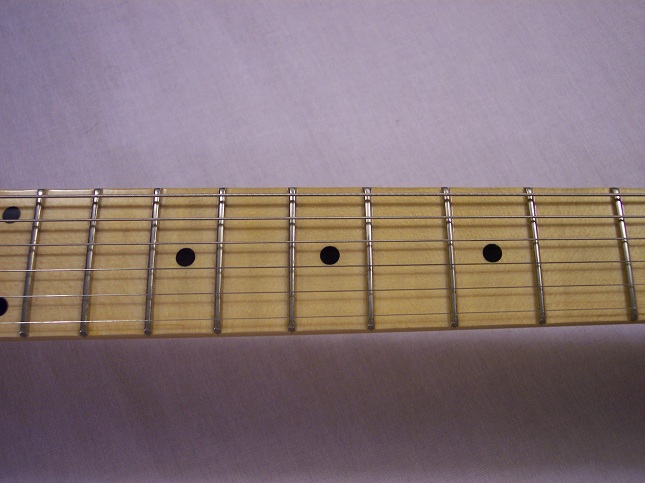

Fretboard Material:Maple
Frets:24 Medium Jumbo
Scale Length:24.75" (629 mm)
Width at Nut:1.68" (43 mm)
Crown Radius:12" (305 mm)
Inlays:Black Dot
F-Holes:None
Bindings:Pickguard: 5-ply Black/White/Black/White/Black

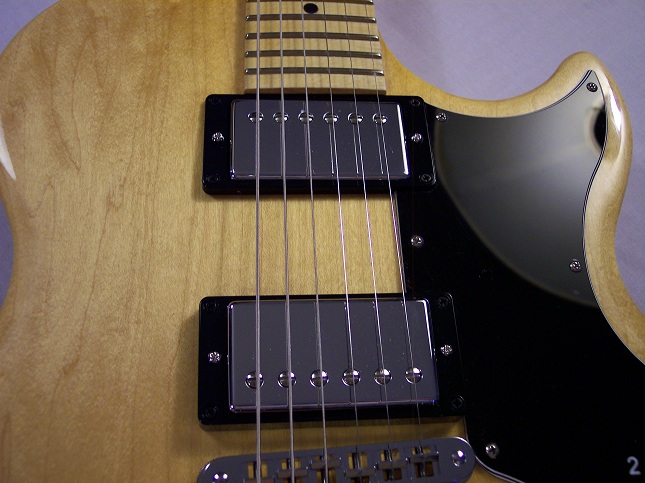

Pickups: Neck: Coil-tapped 490R Alnico II
Bridge: Coil-tapped 498T Alnico V

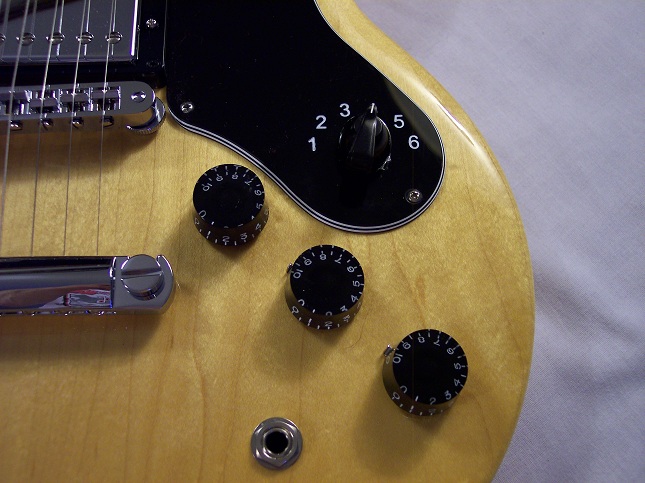

Controls: Master Volume
(2) Tone w/ Frequency Roll-offs
Pickguard-mounted Rotary Switch
Pickup Switching: Six-Way Rotary Pickup Selector:
Position 1: Bridge Humbucker
Position 2: Bridge Single-Coil
Position 3: Bridge and Neck Single-Coil
Position 4: Bridge and Neck Humbucker
Position 5: Neck Single-Coil
Position 6: Neck Humbucker

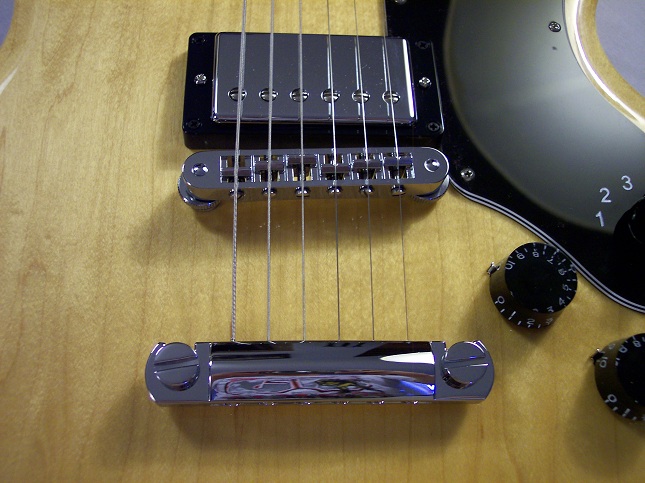

Bridge & Tailpiece:Tune-O-Matic & Stopbar

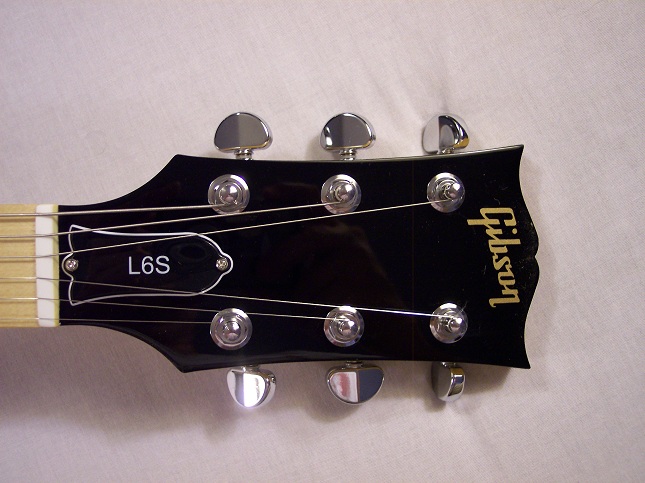

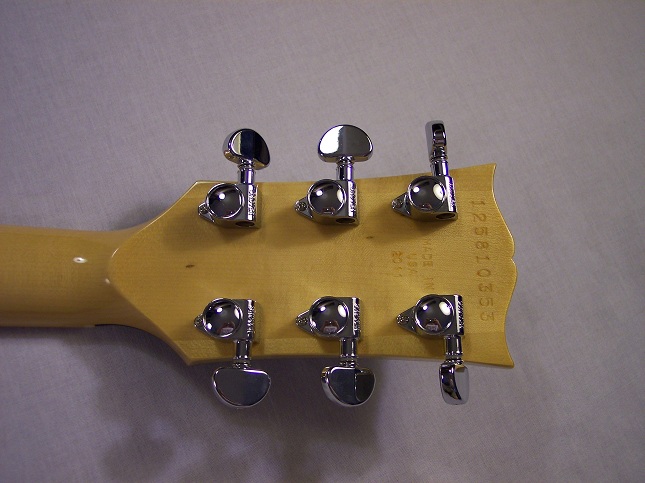

Tuning Machines:Groverâ„¢ Kidney
Hardware:Chrome
Pickguard: Black w/ Rotary Switch Position Indicators
