Roland VK-8 Combo Organ Pictures

Acquired: 1/31/2003 - Ward-Brodt Music

(Click on each picture to see a larger version)

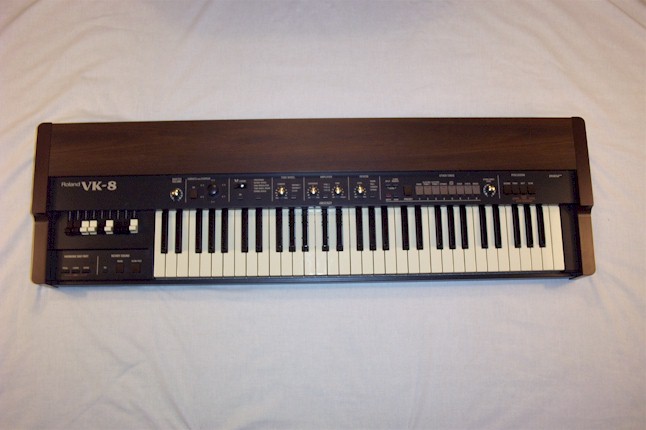

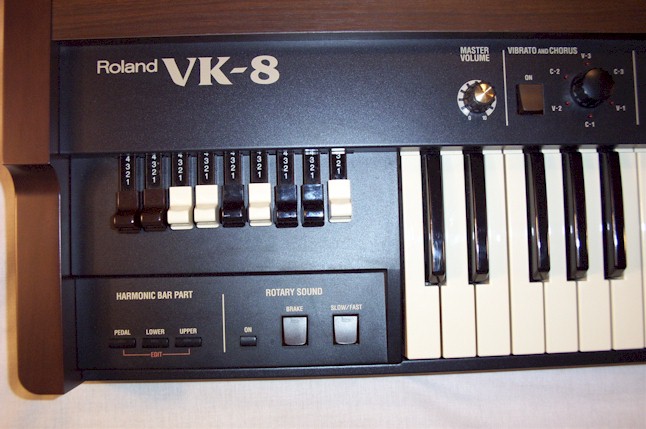

VK-8 Picture 1 VK-8 Picture 2 VK-8 Picture 3 VK-8 Picture 4
VK-8 Picture 5 VK-8 Picture 6 VK-8 Picture 7 VK-8 Picture 8

VK-8 Picture 9 VK-8 Picture 10

Specifications
Manufactured:2003
Model:VK-8
Serial Number:ZP50455
Keyboard:61 keys (Waterfall with velocity)
Sound Generator: Organ: Virtual ToneWheel
Orchestral Tones: PCM
Polyphony: Organ: Full Polyphony
Orchestral Tones: 64 Voices
Finish: Top Panel: Simulated Walnut
Side Panels: Natural Wood, Walnut Finish
Stand: Roland KS-V7 V-Stand

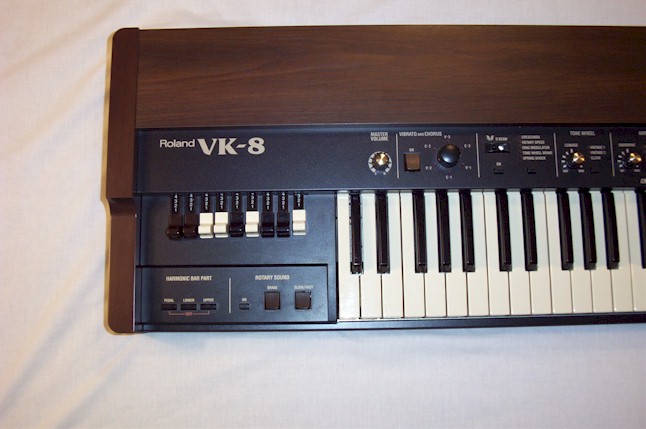

Front Controls: Harmonic Bars: 16', 5-1/3', 8', 4', 2-2/3', 2', 1-3/5', 1-1/3', 1'
HARMONIC BAR PART
 EDIT:
  PEDAL button
  LOWER button
  UPPER button
ROTARY SOUND
  ON button
  BRAKE button
  SLOW/FAST button

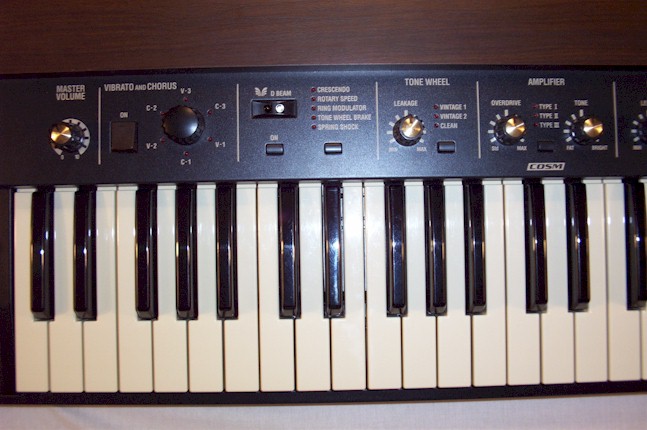

MASTER VOLUME knob
VIBRATO AND CHORUS
  ON button
  Selector knob: (V-1, V-2, V-3, C-1, C-2, C-3)
D BEAM
  ON button
  Selector button:
  (CRESCENDO, ROTARY SPEED, RING MODULATOR
  TONE WHEEL BRAKE, SPRING SHOCK)
TONE WHEEL
  LEAKAGE Level knob
  Selector button: (VINTAGE1, VINTAGE2, CLEAN)

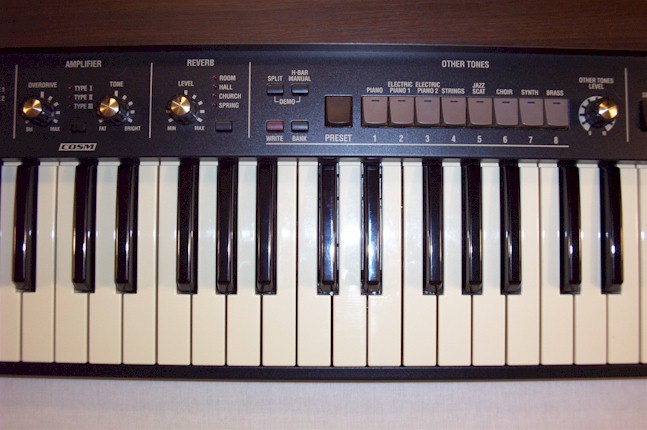

AMPLIFIER
  OVERDRIVE Level knob
  TONE Level knob
  Selector button: (TYPE I, TYPE II, TYPE III)
REVERB
  LEVEL knob
  Selector button: (ROOM, HALL, CHURCH, SPRING)

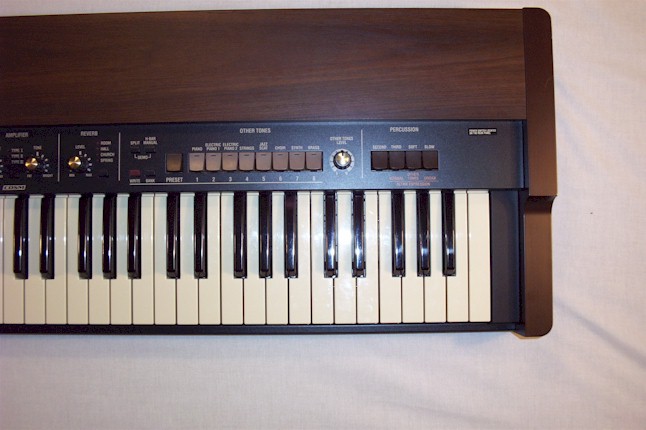

OTHER TONES
 DEMO
  SPLIT button
  H-BAR MANUAL button
 WRITE button
 BANK button
 PRESET button
  PIANO button
  ELECTRIC PIANO 1 button
  ELECTRIC PIANO 2 button
  STRINGS button
  JAZZ SCAT button
  CHOIR button
  SYNTH button
  BRASS button

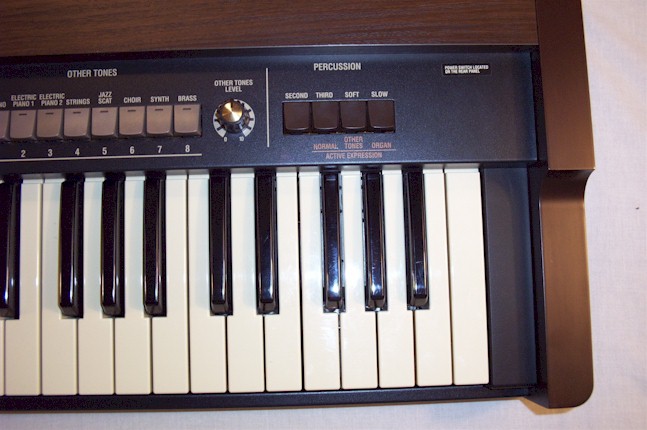

PERCUSSION:
  SECOND button
  THIRD button
  SOFT button
  SLOW button

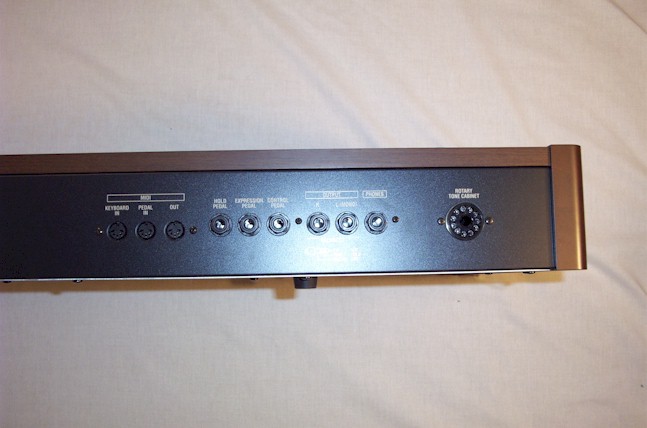

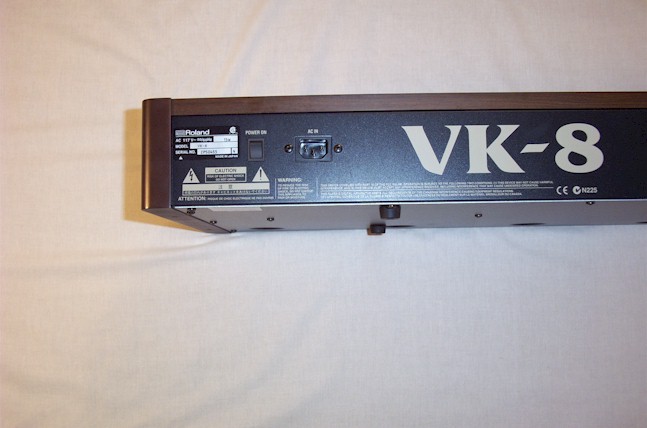

Rear Connectors: POWER ON button
AC IN jack
MIDI jacks: (KEYBOARD IN, PEDAL IN, OUT)
HOLD PEDAL jack
EXPRESSION PEDAL jack
CONTROL PEDAL jack
OUTPUT Jacks (R, L/MONO)
  1/4 inch TRS phone type
PHONES jack
  Stereo 1/4 inch phone type
ROTARY TONE CABINET connector
