Vox AC30C2RD Pictures

#367 0f 550 Produced in Red Basket Weave Vinyl

Acquired: 5/4/2012 - North Coast Music

(Click on each picture to see a larger version)

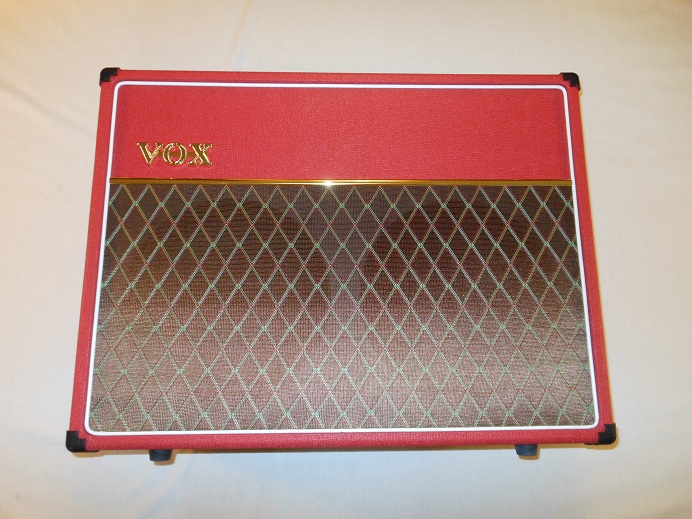

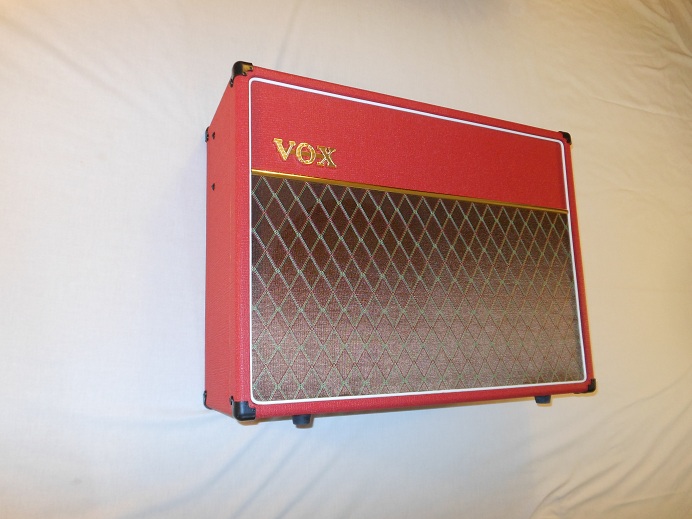

AC30C2RD Picture 1 AC30C2RD Picture 2 AC30C2RD Picture 3 AC30C2RD Picture 4
AC30C2RD Picture 5 AC30C2RD Picture 6 AC30C2RD Picture 7 AC30C2RD Picture 8

Specifications
Manufactured:2010
Model:AC30C2RD
Serial Number:900367
Type:Tube
Tubes: (3) 12AX7 preamp
(4) EL84 power
Ohms:16
Channels: Normal
Top Boost
Power Output:30 Watts
Speakers:(2) 12" 8 ohm Celestion G12M Greenback

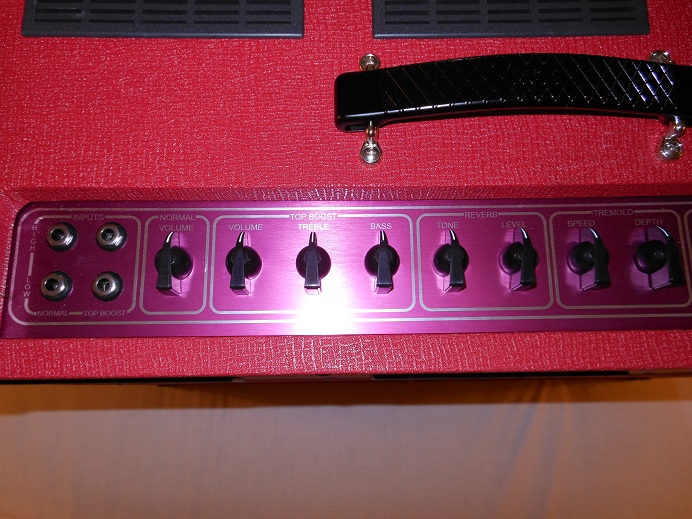

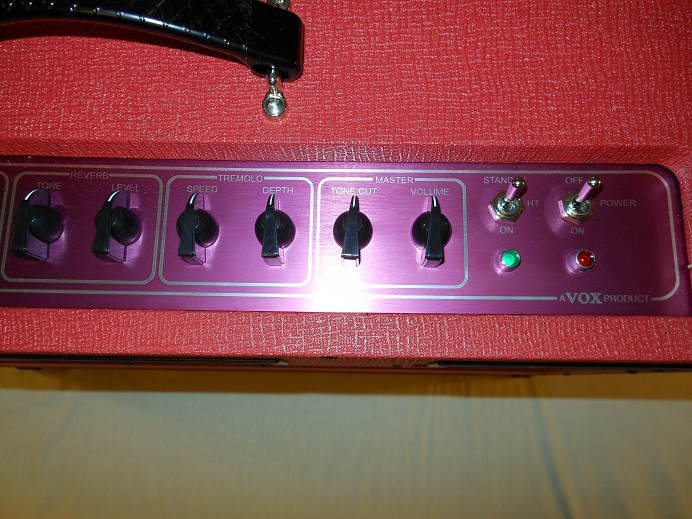

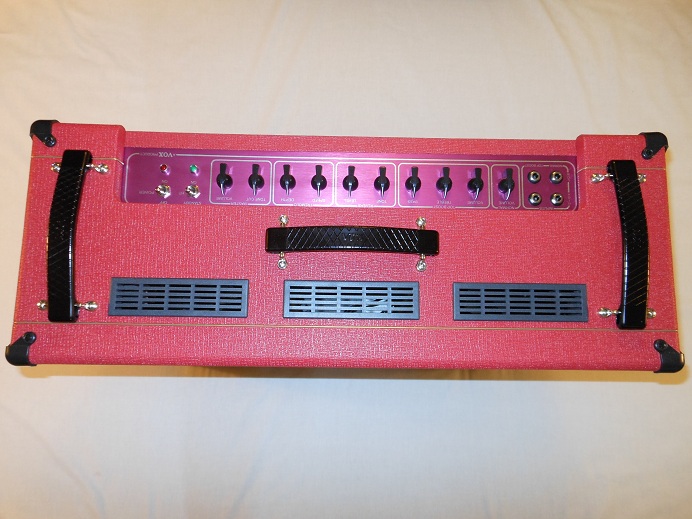

Top Panel: INPUTS
 HIGH
  NORMAL
  TOP BOOST
 LOW
  NORMAL
  TOP BOOST
NORMAL
 VOLUME knob
TOP BOOST
 VOLUME knob
 TREBLE knob
 BASS knob
REVERB
 TONE knob
 LEVEL knob
TREMEMO
 SPEED button
 DEPTH button
MASTER
 TONE CUT button
 VOLUME button
POWER
 STANDBY switch
 STANDBY indicator
 POWER switch
 POWER indicato

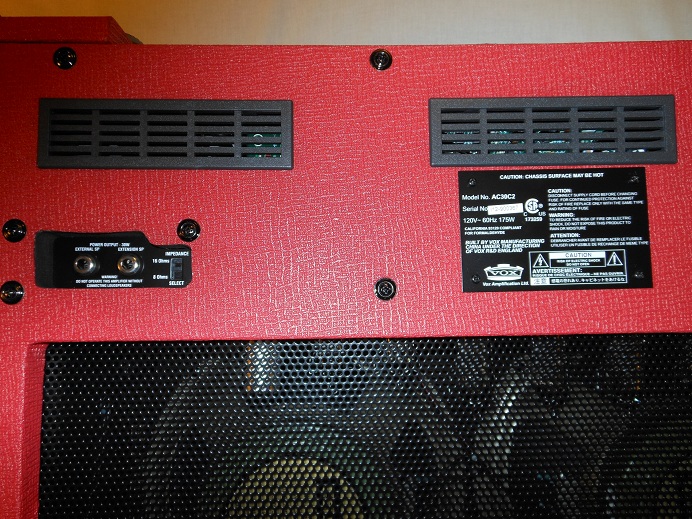

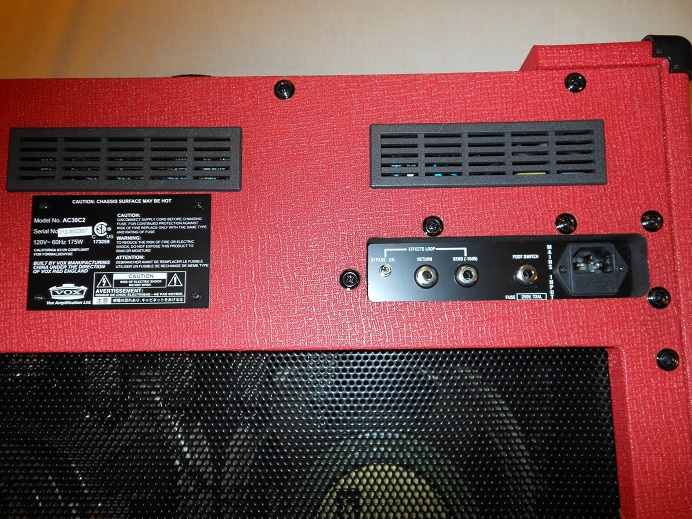

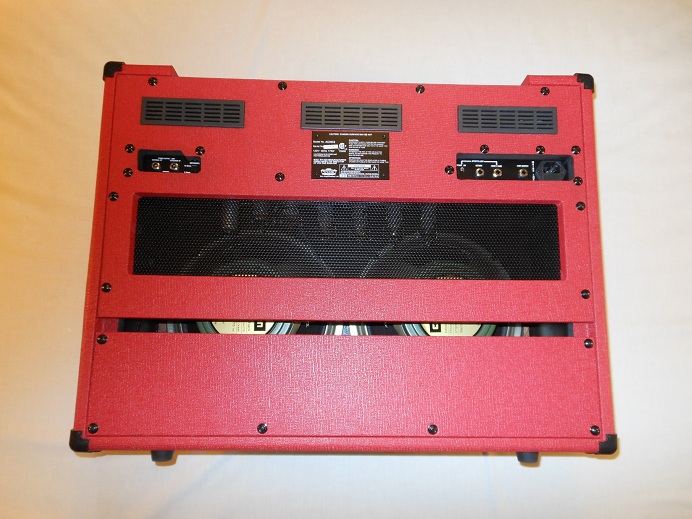

Rear Panel: POWER OUTPUT30W
 EXTERNAL SP output jack
 EXTERNAL SP output jack
IMPEDANCE switch
  16 Ohms
  8 Ohms
EFFECTS LOOP
 BYPASS ON/OFF switch
 RETURN input jack
 SEND output jack
FOOT SWITCH input jack
POWER input jack
