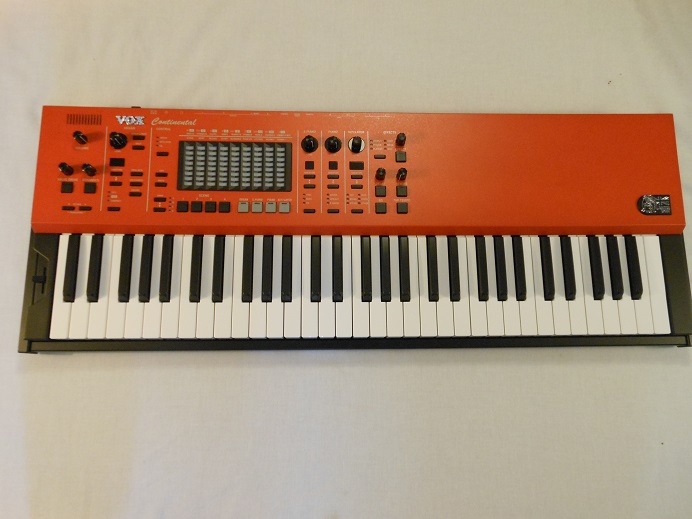

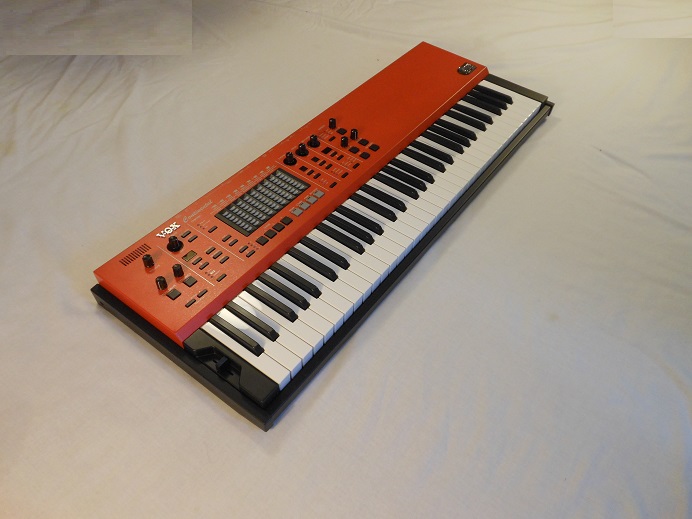

Vox Continental, 61-Key Pictures
Acquired: 3/2/2020 - zZounds
(Click on each picture to see a larger version)
|
|
|
|
| Manufactured: | 2019 |
| Model Code: | CONTINENTAL61 |
| Serial Number: | 00526 |
| Keyboard: |
61 keys (Semi-weighted waterfall)
(velocity sensitive is supported, after touch is not supported)
|
|
| Maximum Polyphony: |
Modeling tonewheel organ sound generator: 128 voices
Modeling transistor organ sound generator: 100 voices
Modeling electric piano sound generator: 80 voices
High-definition Piano sound generator: 60 dual stereo notes
(equivalent to 240 voices max)
Modeling analog synthesizer sound generator: 36 voices
PCM sound generator: 64 stereo notes
(equivalent to 128 voices max)
Actual maximum polyphony will vary depending on oscillator
settings such as stereo multisamples and velocity crossfade
|
| PCM Memory |
Approx. 10.5 GB (in case of 48 kHz, 16-bit Linear PCM converted)
|
|

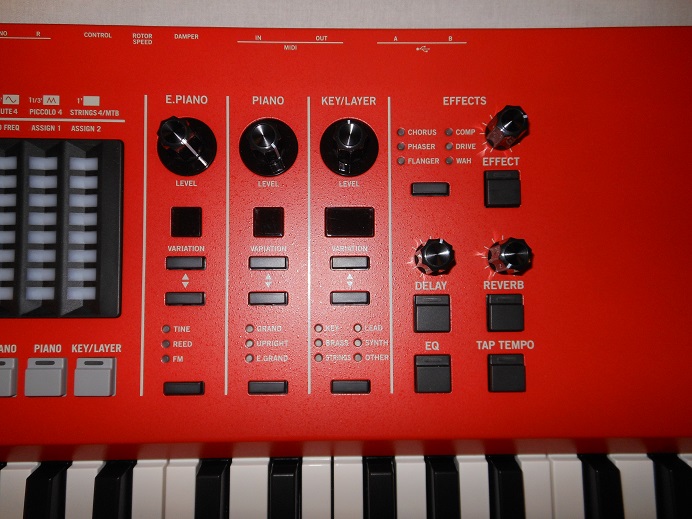

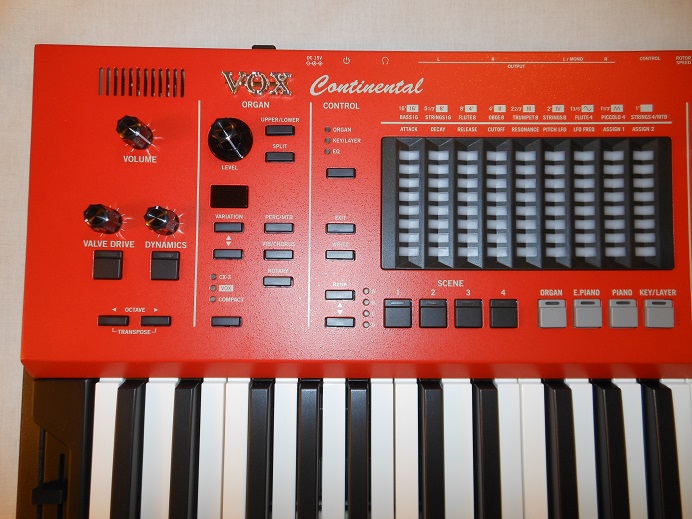

| Front Controls: |
ORGAN Part
3 types (CX-3, VOX, COMPACT),
Draw bar,
Percussion ON/OFF,
Split function,
Vibrato/Chorus ON/OFF,
Rotary Speaker ON/OFF
E.PIANO Part
3 types (TINE, REED, FM)
PIANO Part
3 types (GRAND, UPRIGHT, E.GRAND)
KEY/LAYER Part
6 types (KEY, BRASS, STRINGS, LEAD, SYNTH, OTHER)
Preset Variations
150
Scenes
16 (4 x 4)
Available to save 100 sets to external USB
|
| Effects: |
Insert Effects
CHORUS,
PHASER,
FLANGER,
COMP,
DRIVE,
WAH (control via pedal)
Master Effects
DELAY:
1. DELAY,
2. CROSS,
3. TAPE,
4. MOD DLY
REVERB:
1. HALL1,
2. HALL2,
3. ROOM1,
4. ROOM2,
5. SPRING
EQ
9-band stereo input/output
VALVE DRIVE
Vacuum tube Nutube 6P1
DYNAMICS
Control the amount of change in volume and
tone produced by your keyboard playing dynamics.
|
| Controllers: |

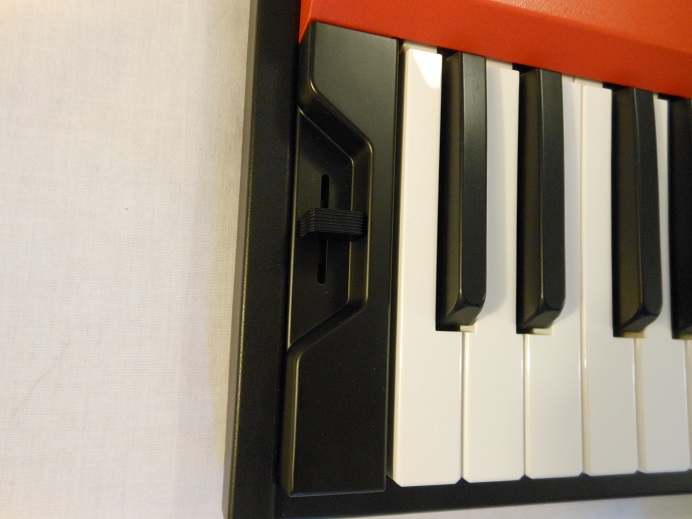

Bend Lever
ORGAN: Rotary Slow/Fast,
E.PIANO: Tremolo ON/OFF,
KEY/LAYER: Pitch bend
Touch sensors (electrostatic capacitance type)
ORGAN: Drawbars,
KEY/LAYER: Sound controls,
EQ: 9 band equalizer
|
| Audio Characteristics: |
Frequency Characteristics
20Hz - 22kHz ±1.0dB 10k ohm load
THD+N
20Hz - 22 kHz 0.005% (standard) 10k ohm load
S/N Ratio
105dB (standard)
|

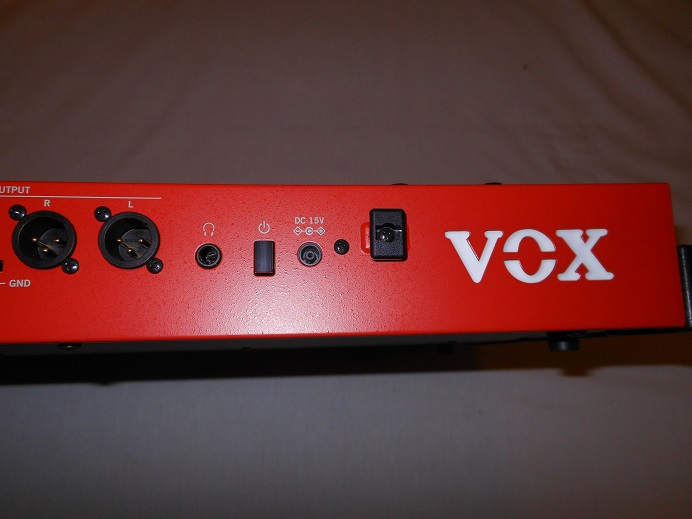

| Audio Output: |
OUTPUT L/MONO, R
Connector: 6.3 mm (1/4") monaural phone jack, unbalanced
Output impedance: 1.1 ohm (when outputting in stereo),
600 ohm (L/Mono jack, when outputting in mono)
Maximum level: +16.0 dBu
Load impedance: 10k ohm or more
OUTPUT L, R
Connector: XLR-3-32 type (balanced) + LIFT - GND switch
Output impedance: 350 [O] (when outputting in stereo)
Maximum level: +16.0 dBu
Load impedance: 10k ohm or more
HEADPHONES
6.3 mm (1/4") stereo phone jack
Output impedance: 50 ohm
Maximum level: 150 + 150 mW @32 ohm
|

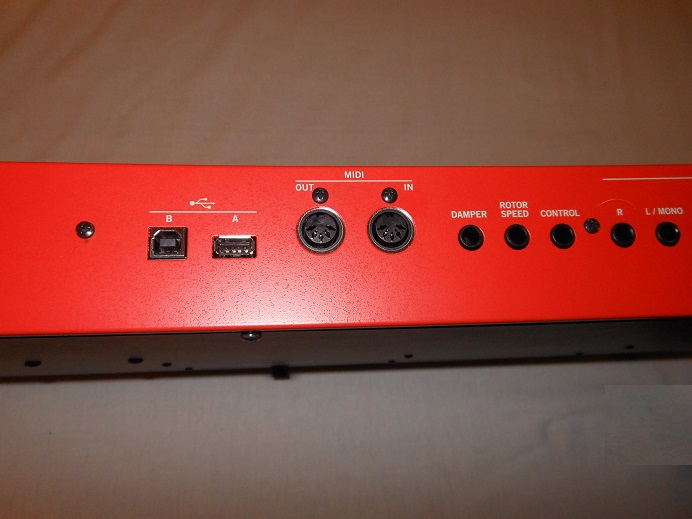

| Control Inputs: |
DAMPER
KORG DS-1H damper pedal (supports half-damper), PS-1 and PS-3 pedal switches
ROTOR SPEED
KORG PS-1 and PS-3 pedal switches
CONTROL
V861 VOL/EXP pedal volume/expression pedal V861
|
| Other Sounds: |
MIDI
IN, OUT
USB
USB A (TYPE A): Saving/loading scene data
USB B (TYPE B): MIDI interfaces: 1 (16 ch) in/1 (16 ch) out
|
|
|
|
|
|
